Plan "H" - Closed Tine Flash Hider
Available Materials
17-4 Stainless Steel (H900)
Available Coatings
Raw
Nitride

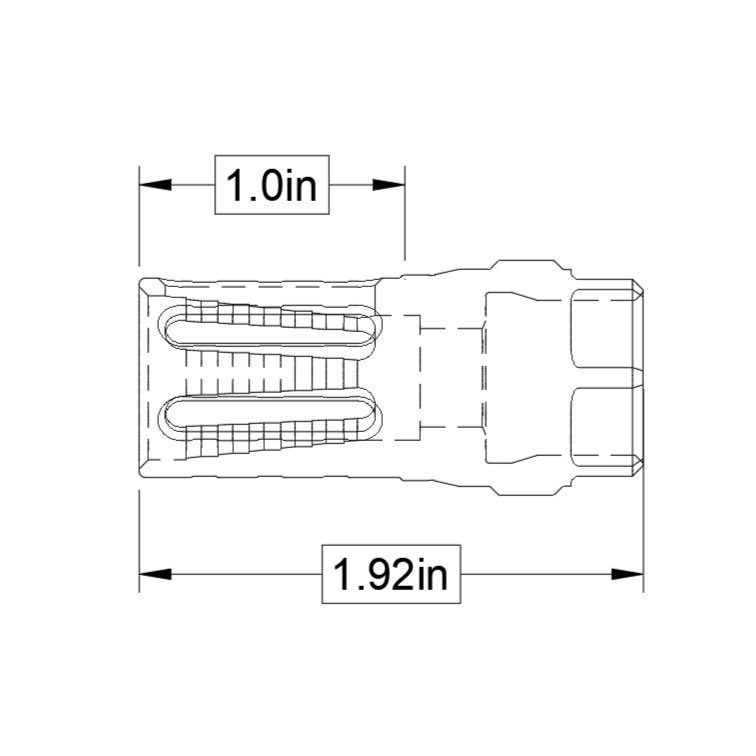

Dimensions
Overall Length:
1.92"
Length Past Taper Seal:
1.0”
Inner Thread Options:
1/2" x 28
Shoulder Mount
0.285" Bore
5/8" x 24
Face & Shoulder Mount
0.375" Bore
14×1 MM
Left Hand
Face & Shoulder Mount
0.375" Bore
Other Threads:
0.90" x 24 TPI
Compatible with "Plan B" Mount Ecosystem
